20000408 Adapter Kit Installation Instructions

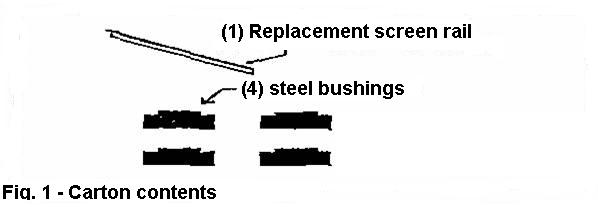

1. Compare the contents of the carton in Figure 1 with the actual parts recieved.  If any parts are missing or damaged, contact your dealer before beginning installation.

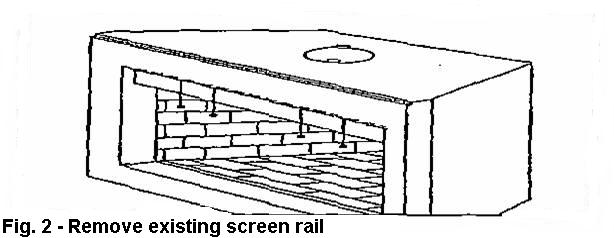

2. Remove the existing screen rail from the top of the fireplace opening as shown in Figure 2 and replace with new screen rail provided in this kit.

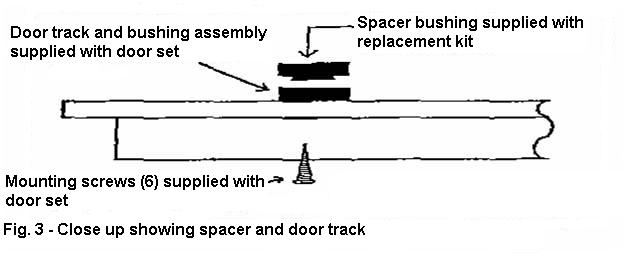

3. Remove the steel spacers from the bag and place on door tracks as shown.  Then follow instructions supplied with doors to complete door installation.
***NOTE: On the R series fireplaces the mounting holes for the new door have to be drilled.  This can be done using the door track supplied with the new doors as a template.  Center and flush mount the track in the fireplace opening before drilling.
